Custom manufacturing example · High hardness anti-vibration silicone rubber shock-absorbers
CUSTOM RUBBER & SILICONE MANUFACTURING

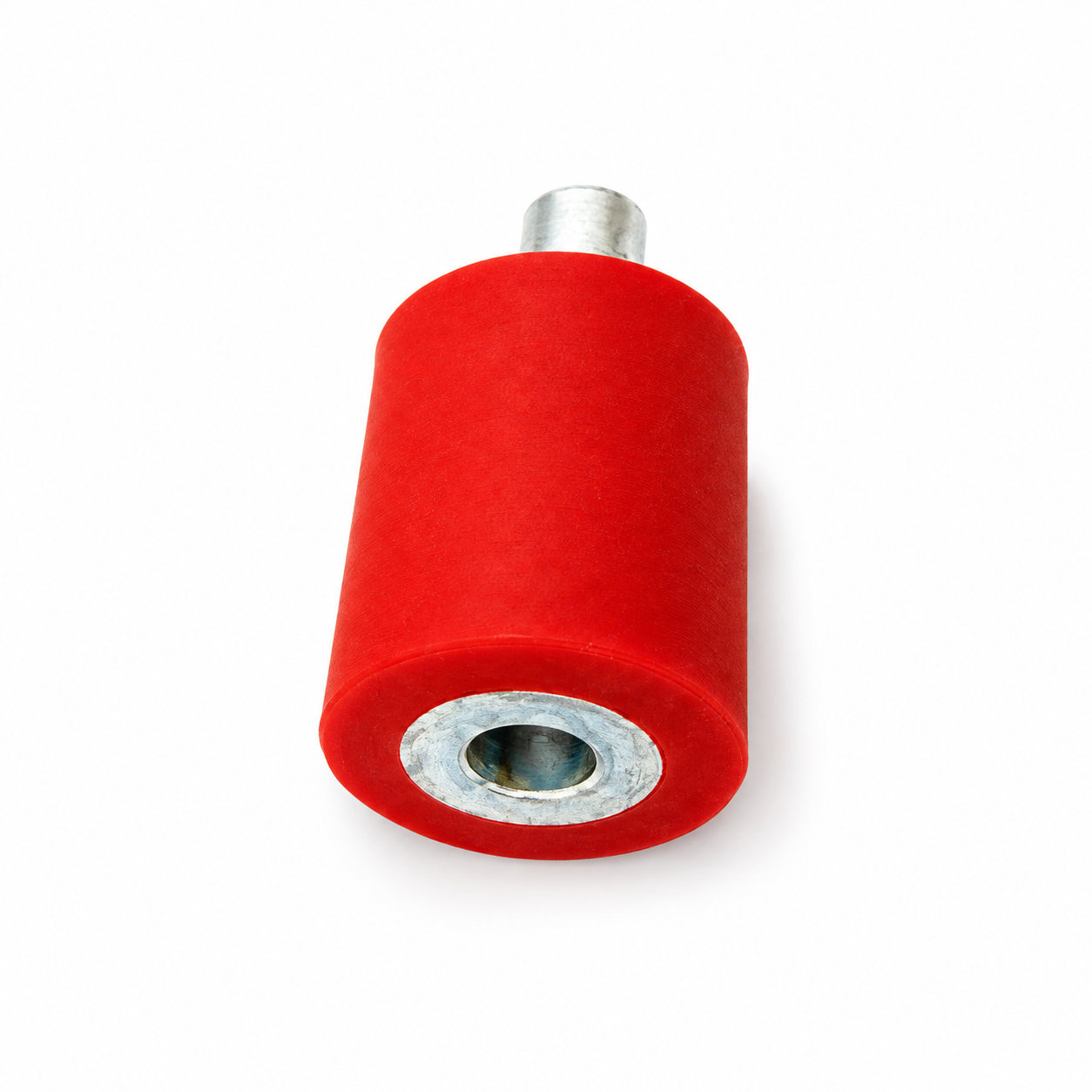

High hardness anti-vibration silicone rubber shock-absorbers
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Silicone rubber shock-absorbers need a hardness and geometry selected for the intended mounting or contact arrangement. A higher hardness changes the rubber's response; it is not automatically an improvement over a softer component. The available deformation, supported structure and direction of force all belong to that selection.
Check the working section and installed clearance before choosing the formulation. A stiffer part may alter the position or movement of adjoining components, while an approximate body size can introduce unintended contact. The actual load and operating conditions require evaluation at the assembly level.
No specific impact capacity or vibration reduction follows from the general hardness description. During installation, preserve the planned attachment spacing and keep the rubber from being preloaded through misalignment. Service inspections should compare the resting geometry with the intended arrangement and look for local damage near rigid features. A replacement should restore the defined function rather than use hardness alone to compensate for an unresolved mounting problem.
- Material options
- Custom silicone compound; formulation and geometry developed together.
- Hardness selection
- Silicone options: 20–80 Shore A. The available deformation, supported structure and direction of force all belong to that selection.
- Custom geometry
- Check the working section and installed clearance before choosing the formulation.
- Fit evaluation
- During installation, preserve the planned attachment spacing and keep the rubber from being preloaded through misalignment.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. Silicone rubber shock-absorbers need a hardness and geometry selected for the intended mounting or contact arrangement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
