Custom manufacturing example · High quality anti-vibration rubber damper/round rubber mount
CUSTOM RUBBER & SILICONE MANUFACTURING

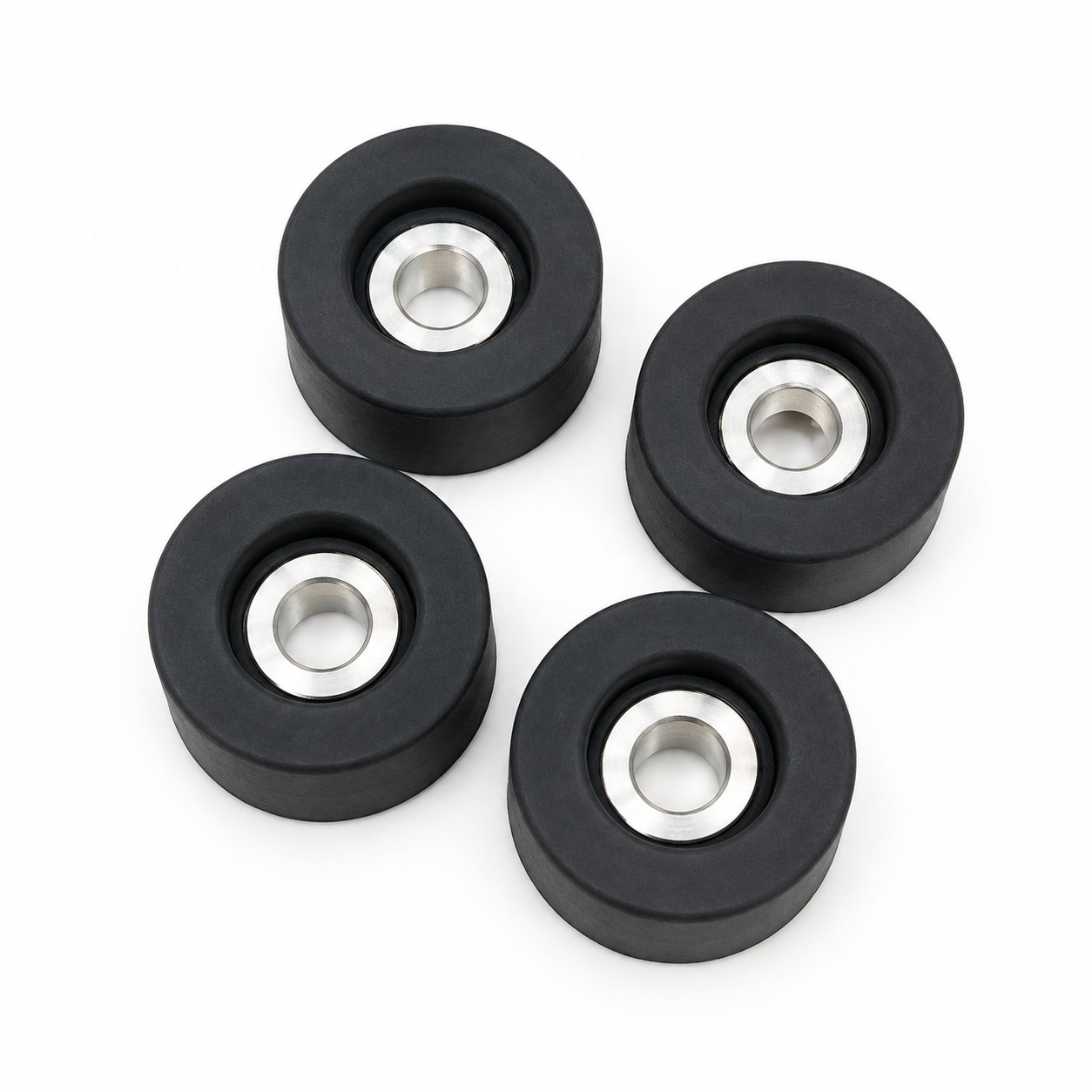

High quality anti-vibration rubber damper/round rubber mount
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A round rubber mount should be positioned so that the intended load reaches its working section as designed. The custom diameter, height, attachment, and material need to follow the complete support arrangement. A circular outline does not establish equal behavior under every loading direction.
Check the relationship between the mount axis and the supported component. An offset load can affect the rubber differently from a centered one. The body also needs enough clearance to move without rubbing against adjacent hardware or contacting another surface.
Install through the equipment's intended fastening arrangement and assess the complete setup under normal operation. Keep compatible support heights where multiple mounts are used. During maintenance, inspect for uneven deformation, cracking, or movement at the attachment. Replace with the required geometry and compound so that the original load relationship is preserved rather than selecting only by outside diameter. Recurring one-sided wear should prompt inspection of the supported component's position and surrounding clearances.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Keep compatible support heights where multiple mounts are used.
- Custom geometry
- The custom diameter, height, attachment, and material need to follow the complete support arrangement.
- Fit evaluation
- Install through the equipment's intended fastening arrangement and assess the complete setup under normal operation.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. The custom diameter, height, attachment, and material need to follow the complete support arrangement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
