Custom manufacturing example · High quality oil-proof rubber washer/molded white rubber seal
CUSTOM RUBBER & SILICONE MANUFACTURING

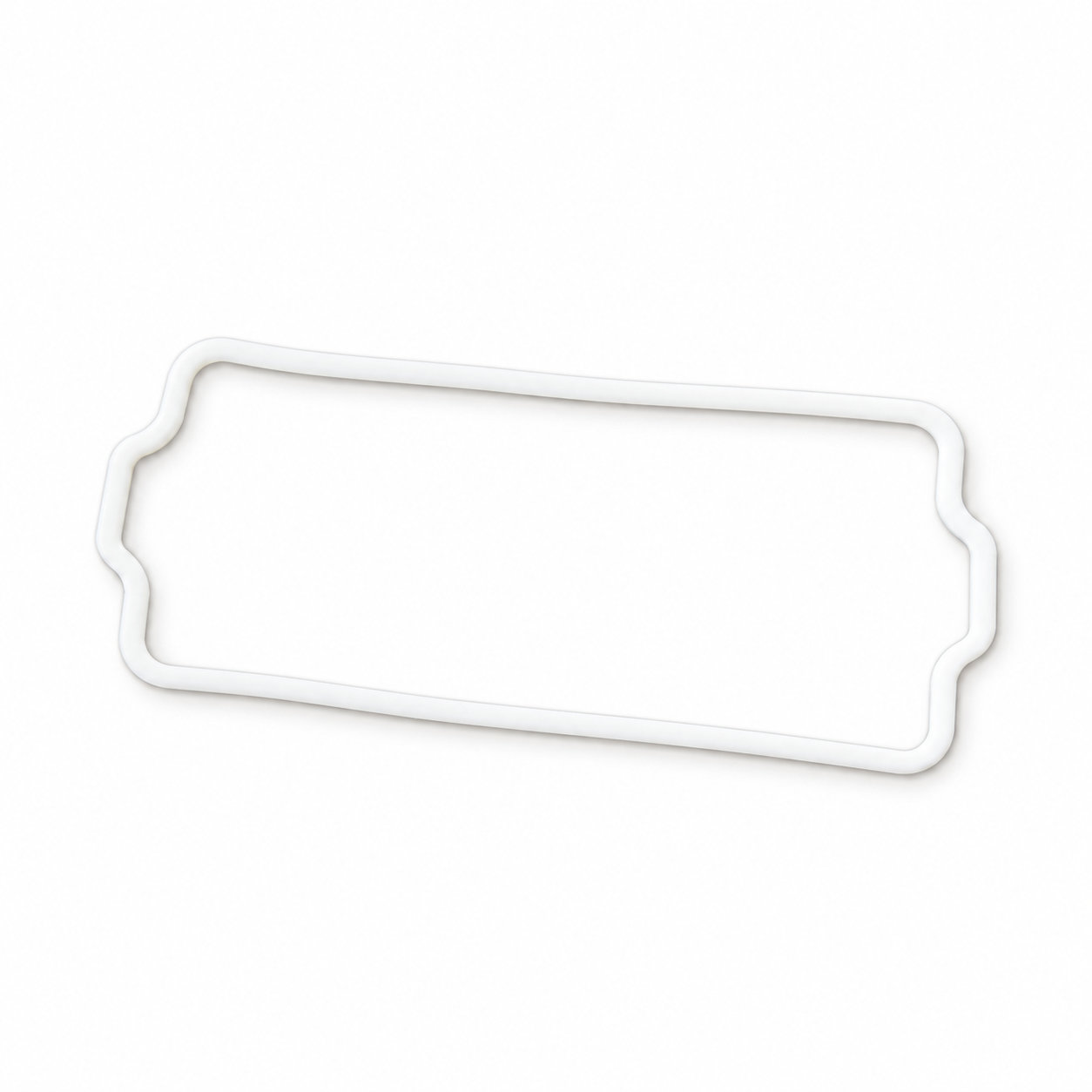

High quality oil-proof rubber washer/molded white rubber seal
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A molded white rubber seal offers a light-colored component for a custom joint or washer arrangement. Its dimensions, outline, and compound can be selected for the assembly. Where oil exposure is expected, choose the formulation for the actual fluid rather than treating the white appearance as an indicator of performance.
The visible color can help distinguish the seal from nearby dark components during assembly. Use that distinction alongside the required shape and material specification, especially when several similar parts are handled together. Inner openings and outside edges need to align with the mating surfaces so that the contact region remains supported.
Fit the seal on clean parts and check its position before applying compression. A trapped fold can be easier to notice against a contrasting surface, but the full contact path still needs inspection. During care, remove residue using a method compatible with the selected rubber. If the seal has swollen, torn, or permanently changed thickness, replace it with the correct variant rather than selecting a visually similar part from another application.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Specify the white gasket grade for the required deformation and actual oil exposure; color does not establish how the compressed compound behaves.
- Custom dimensions
- Inner openings and outside edges need to align with the mating surfaces so that the contact region remains supported.
- Fit & assembly
- Fit the seal on clean parts and check its position before applying compression.
- Use & inspection
- During care, remove residue using a method compatible with the selected rubber.
Photos illustrate structure or material only. A molded white rubber seal offers a light-colored component for a custom joint or washer arrangement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
