Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · High quality rubber sealing gasket/colored rubber O-ring/washer
CUSTOM RUBBER & SILICONE MANUFACTURING

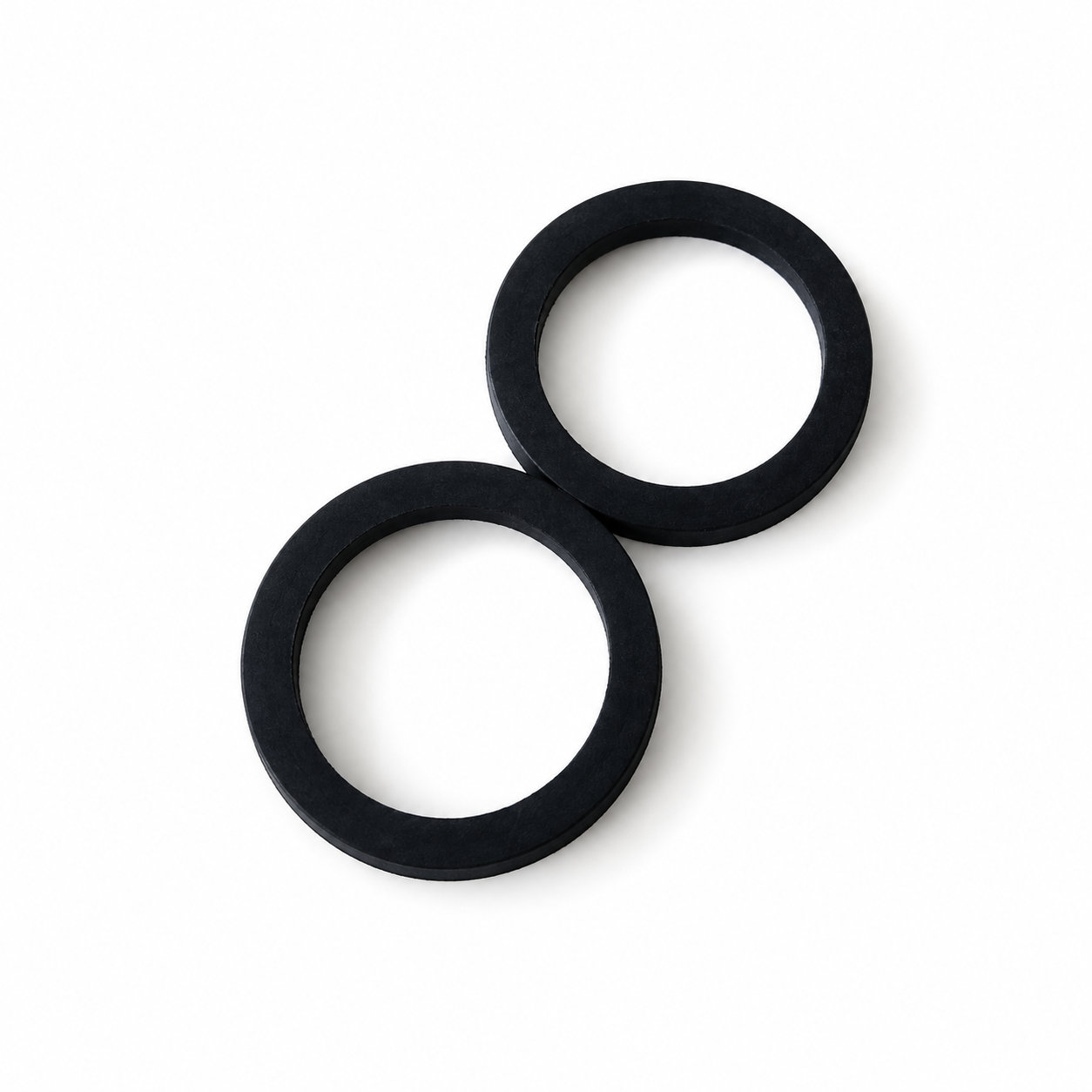

High quality rubber sealing gasket/colored rubber O-ring/washer
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A custom rubber sealing gasket can take the form of a colored O-ring or washer, depending on the joint it serves. These forms have different cross sections: an O-ring occupies a groove or defined sealing space, while a flat washer lies between supporting faces. The chosen geometry should follow the mating components before color or other identification is added.
For a ring, establish the free inside diameter and section size together with the groove. For a washer, establish both diameters and the thickness remaining within the closed joint. A similar outside diameter does not make these two forms interchangeable, because the rubber must deform within different surrounding spaces.
Color can distinguish material or size variants during assembly when it is tied to a consistent part specification. Select the compound for the contacting medium, cleaning method and operating conditions. Keep identifying features outside the active sealing surface, and fit the part without twisting or folding it. When replacing an existing seal, compare its defined original dimensions rather than copying a worn or permanently compressed shape.
- Material options
- Rubber. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. A similar outside diameter does not make these two forms interchangeable, because the rubber must deform within different surrounding spaces.
- Custom dimensions
- For a ring, establish the free inside diameter and section size together with the groove.
- Fit & assembly
- Color can distinguish material or size variants during assembly when it is tied to a consistent part specification.
- Use & inspection
- Select the compound for the contacting medium, cleaning method and operating conditions.
Photos illustrate structure or material only. For a ring, establish the free inside diameter and section size together with the groove. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
