Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · High quality rubber shock-absorber/anti-vibration buffer
CUSTOM RUBBER & SILICONE MANUFACTURING

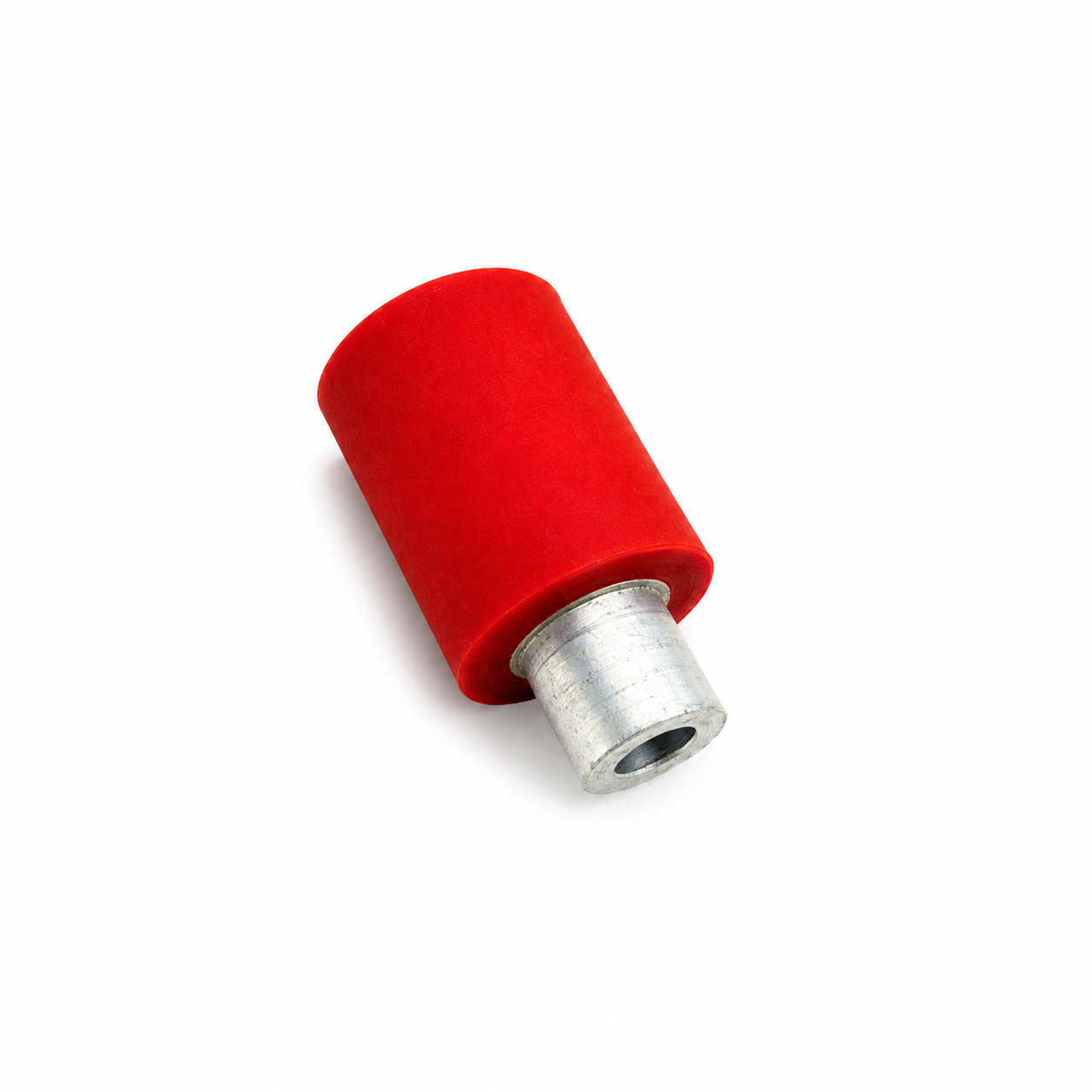

High quality rubber shock-absorber/anti-vibration buffer
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A custom anti-vibration buffer needs its body and attachment selected for the position it occupies under normal loading. The Buna-N formulation should suit the actual temperature and substances. The unloaded shape is useful for dimensions, but the complete assembly determines the working relationship.
Check the supported component and the clearance around the rubber once the equipment reaches its normal condition. A nearby hard surface should not make unintended contact as the body deforms. The load should enter the intended working region rather than a narrow unsupported edge.
Install through the specified arrangement and evaluate the equipment in its normal configuration. During maintenance, inspect contact patterns, cracks, and persistent changes in position. Examine adjacent structures if wear repeatedly occurs in one area. Use a replacement with the required compound and profile rather than fitting a taller buffer to conceal a changed load or alignment. Preserving the original working position maintains the intended flexible interface within the assembly.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. A nearby hard surface should not make unintended contact as the body deforms.
- Custom geometry
- The unloaded shape is useful for dimensions, but the complete assembly determines the working relationship.
- Fit evaluation
- Install through the specified arrangement and evaluate the equipment in its normal configuration.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. The unloaded shape is useful for dimensions, but the complete assembly determines the working relationship. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
