Custom manufacturing example · High quality silicone rubber bond met/rubber mounts/bumper
CUSTOM RUBBER & SILICONE MANUFACTURING

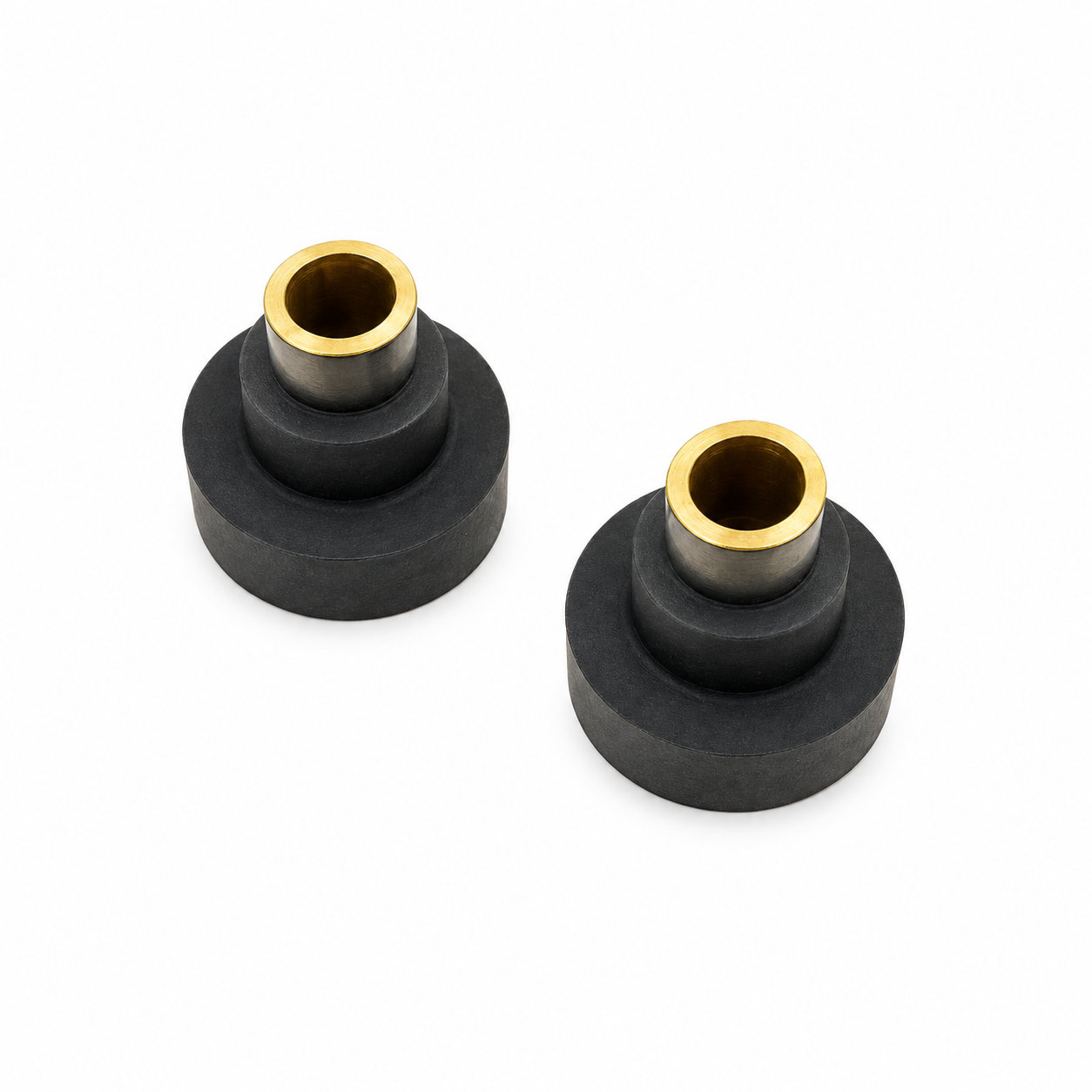

High quality silicone rubber bond met/rubber mounts/bumper
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Custom silicone rubber mounts should be developed around the interface between the rubber body and the supporting assembly. Where a bonded or metal-associated construction is required, the actual geometry and attachment need definition as part of the selected design rather than being inferred from a brief product label.
Choose the material and profile for the local exposure and required movement. Check the supported areas and neighboring clearances so the rubber can respond within the intended space. The complete assembly must be evaluated for any load or damping requirement.
During installation, follow the designated fastening or locating method and inspect for a twisted body or unintended edge contact. During maintenance, examine the attachment interface as carefully as the exposed rubber. Movement, separation or damage at that location can change behavior before a large surface split appears. Preserve the selected construction in replacements and correct damaged mating hardware before a new mount is installed into the same position.
- Material options
- Custom silicone compound; formulation and geometry developed together.
- Hardness selection
- Silicone options: 20–80 Shore A. Choose the material and profile for the local exposure and required movement.
- Custom geometry
- The complete assembly must be evaluated for any load or damping requirement.
- Fit evaluation
- During installation, follow the designated fastening or locating method and inspect for a twisted body or unintended edge contact.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. Custom silicone rubber mounts should be developed around the interface between the rubber body and the supporting assembly. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
