Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Rubber industrial suction cup powerful vacuum sucker
CUSTOM RUBBER & SILICONE MANUFACTURING

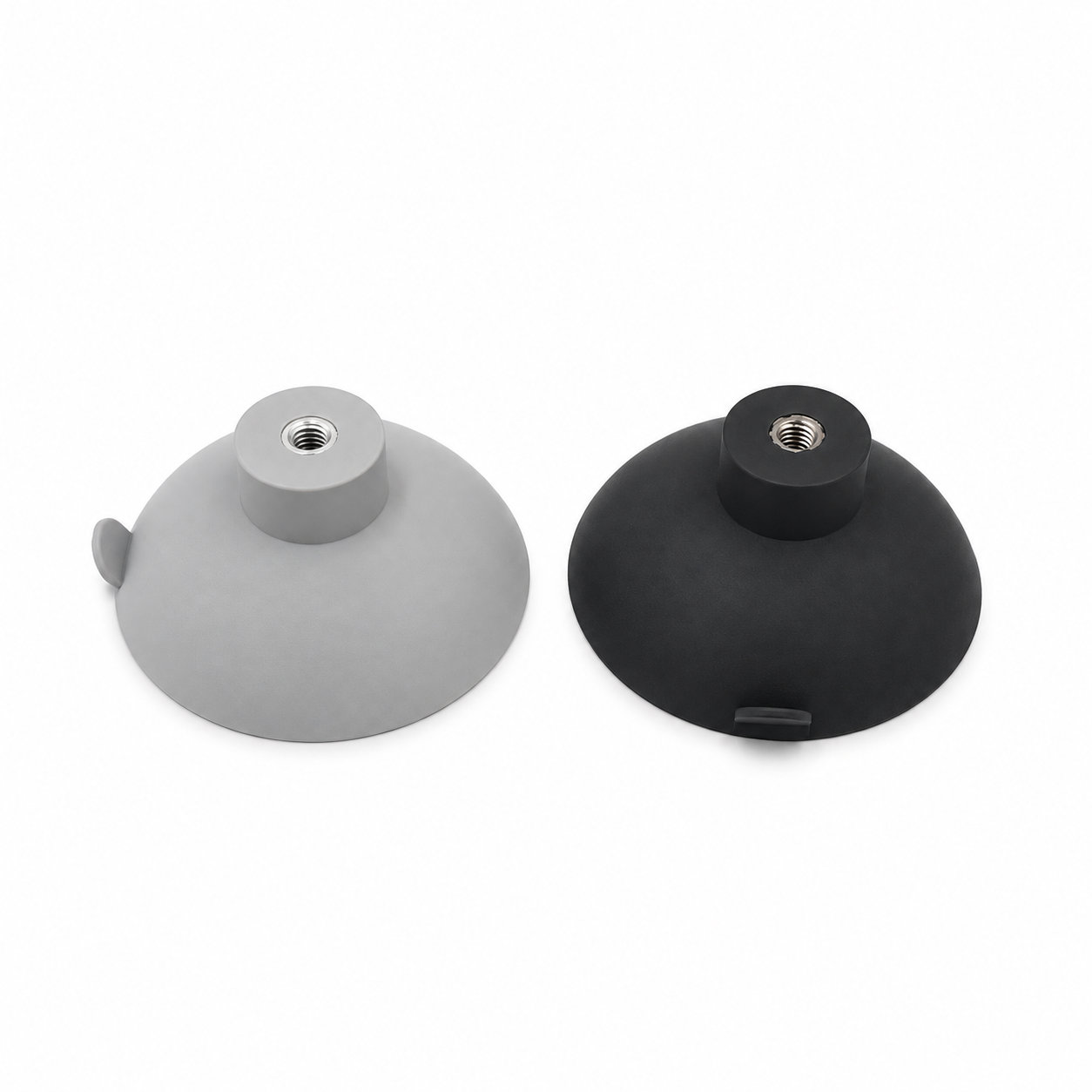

Rubber industrial suction cup powerful vacuum sucker
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A rubber industrial suction cup provides a contact interface within a vacuum handling or holding arrangement. Custom size, profile, and hardness can be selected for the workpiece and mounting system. The cup lip needs to meet a suitable surface while the rest of the assembly maintains the intended position and operating conditions.
Consider the workpiece where the cup actually touches it. Surface texture, curvature, seams, or contamination can change the available contact. The direction of movement and the time the part remains held also belong in the assessment. Evaluate the cup with the complete vacuum arrangement rather than inferring capacity from its diameter or visual shape.
Mount the cup so it can approach the workpiece without an unintended tilt. Keep the lip clean, inspect it for damage, and prevent debris from entering the relevant vacuum path. If several cups share one workpiece, arrange them so each can establish its intended contact. Release the part through the system's planned sequence instead of using the mounting hardware to peel the rubber away under uncontrolled load.
- Material options
- Rubber compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Custom size, profile, and hardness can be selected for the workpiece and mounting system.
- Custom geometry
- Evaluate the cup with the complete vacuum arrangement rather than inferring capacity from its diameter or visual shape.
- Fit evaluation
- Consider the workpiece where the cup actually touches it.
- Color & OEM
- Custom colors; OEM markings outside the suction contact face.
Photos illustrate structure or material appearance only. A rubber industrial suction cup provides a contact interface within a vacuum handling or holding arrangement. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
