Vacuum silicone rubber suction cup with m4 screw

A custom component for your assembly.

Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.

Factory direct
Made to order
Drawing & sample support

Share the part, its application and your estimated quantity.

Customize the fit, material and finish

Vulcanization workshop illustration with green molding presses and blue collection bins

Material & hardness

Selected for the contact, temperature and movement

Color & finish

Define the visible surfaces and intended color

Shape & dimensions

Develop holes, lips and walls around the mating parts

Mounting & fit

Match the attachment and installation method

Product Overview

A rubber suction cup with m4 screw offers a threaded attachment for the component held by the cup. The M4 connection should be checked for the intended engagement and surrounding clearance, while the cup itself is selected around its contact surface. Tightening the screw must not leave the flexible body twisted or distort the rim before it is placed against the surface.

Consider the position of the attached load relative to the cup center. A projecting bracket can add leverage that tends to lift one side even when the screw remains secure. Evaluate holding behavior with the actual bracket, surface, orientation, and expected movement.

Prepare the cup rim and surface so no grit or residue interrupts contact. Fit the cup according to its design and confirm the attachment rests without tipping it. During reuse, inspect the rubber near the screw and around the lip for damage. Release suction before repositioning the assembly instead of turning the mounted component against an attached cup, which can place unnecessary twisting force on the connection.

Material options: Custom silicone compound; formulation and geometry developed together.
Hardness selection: Silicone options: 20–80 Shore A. The M4 connection should be checked for the intended engagement and surrounding clearance, while the cup itself is selected around its contact surface.
Custom geometry: Tightening the screw must not leave the flexible body twisted or distort the rim before it is placed against the surface.
Fit evaluation: Evaluate holding behavior with the actual bracket, surface, orientation, and expected movement.
Color & OEM: Custom colors; OEM markings outside the suction contact face.

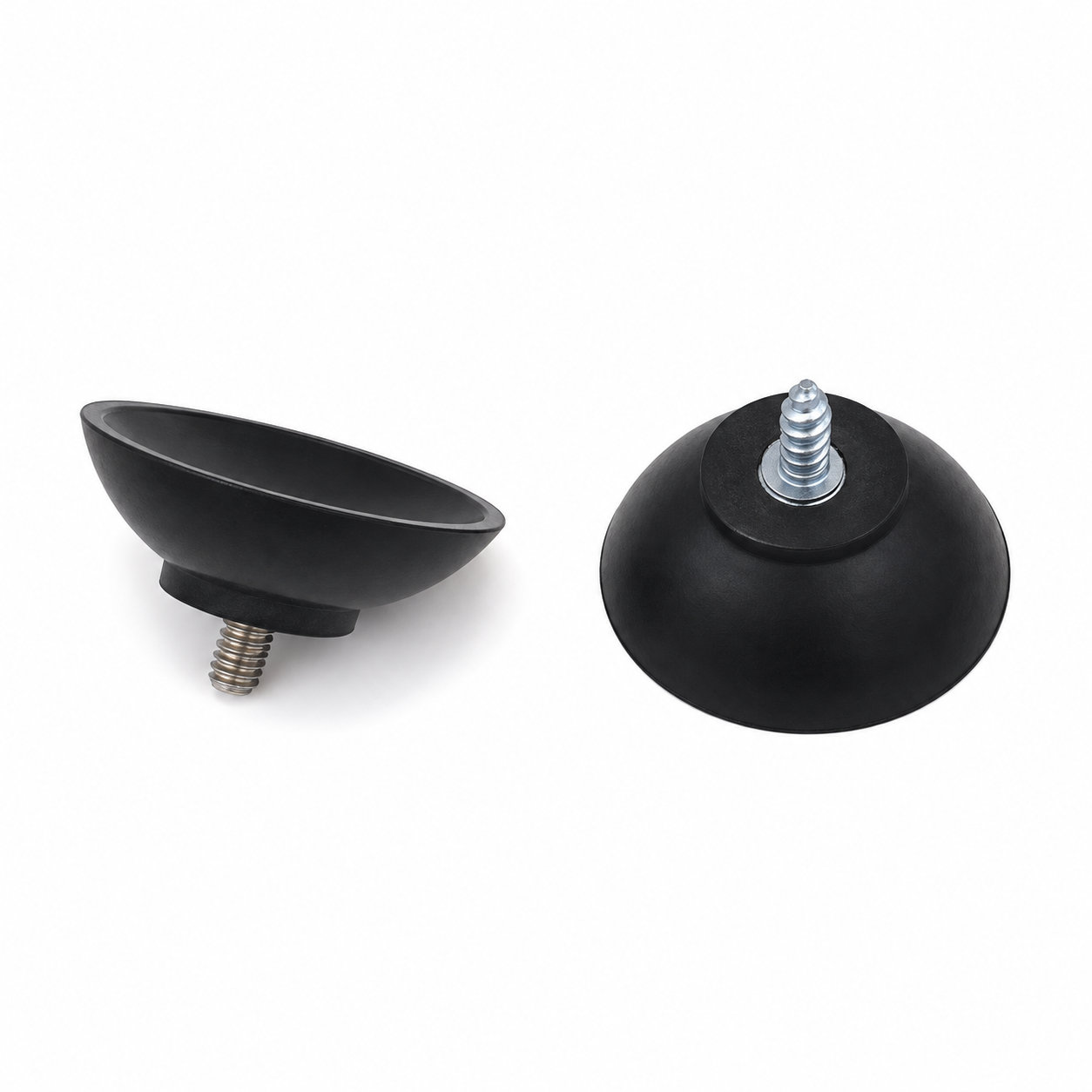

Photos illustrate structure or material appearance only. The M4 connection should be checked for the intended engagement and surrounding clearance, while the cup itself is selected around its contact surface. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.

Choosing a material or hardness? Explore the selection guide →

From part requirements to production

Define the part

Identify key dimensions, mating surfaces and quantity

Review material & tooling

Agree the compound and manufacturing approach

Evaluate the sample

Review the fit and agreed requirements in the assembly

Produce & inspect

Manufacture and check against the approved requirements

Review the intended assembly

Working conditions

Identify temperature, contact fluids and repeated movement.

Material and structure

Consider hardness together with wall thickness and support.

Installation

Check access, mating dimensions and the fitting sequence.

Ordering this custom component

Can the shape be adjusted to my mating parts?

Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.

Which details should be agreed before tooling?

Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.

Can a sample help define the replacement?

A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.

How is the quotation for this part determined?

The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
