Working conditions
Identify temperature, contact fluids and repeated movement.

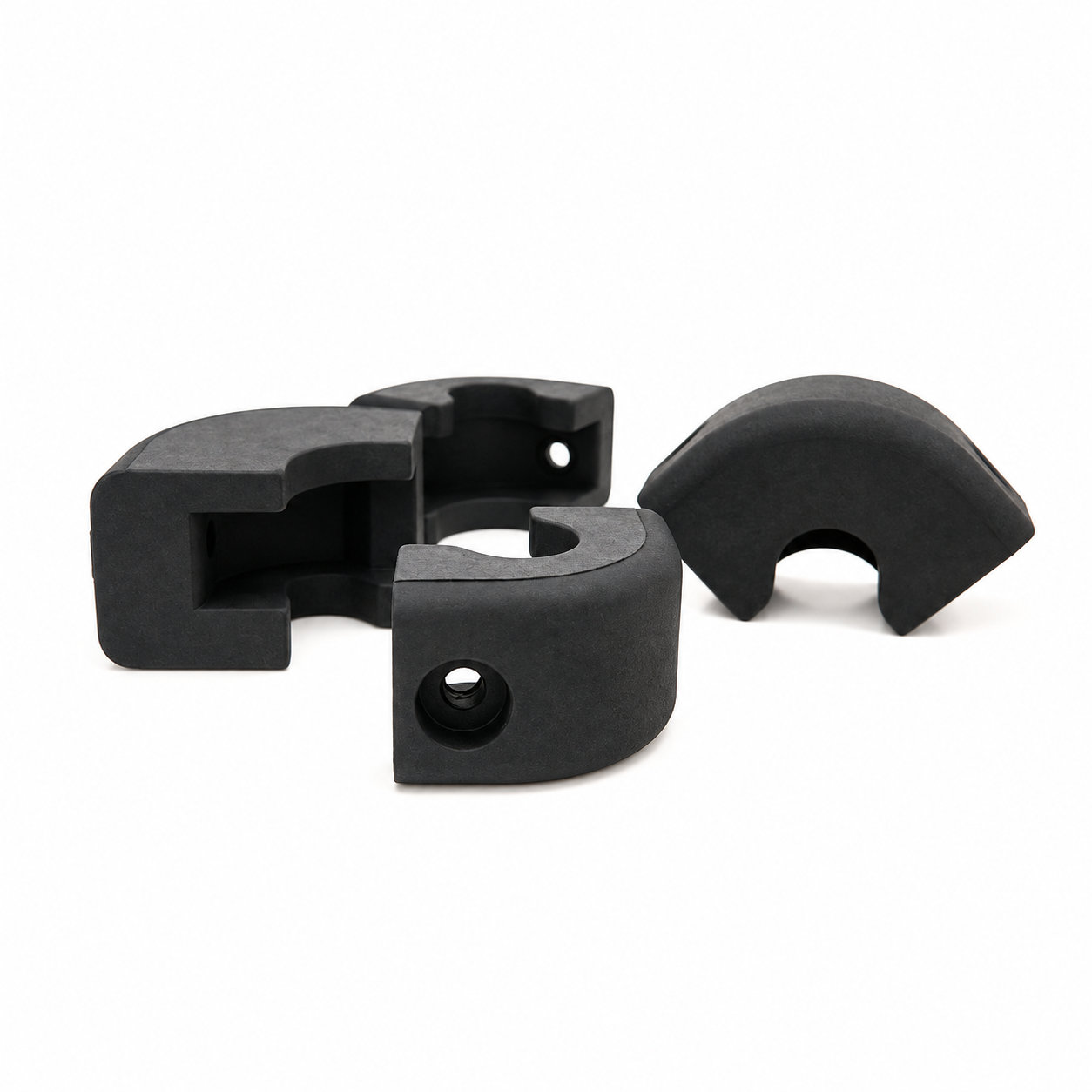

Custom manufacturing example · neoprene bumper/anti-vibration rubber mounts for equipment
CUSTOM RUBBER & SILICONE MANUFACTURING
neoprene bumper/anti-vibration rubber mounts for equipment
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A neoprene bumper should meet the neighboring equipment component at the position intended by the design. Custom molded dimensions can follow the working face and attachment, with EPDM or neoprene formulations selected according to the actual environment. Material choice needs to remain linked to the intended use.
Check the supported area behind the rubber and the direction of force. A broad outer shape may still receive contact only at one edge if the parts are misaligned. Leave the clearance required for the working section to deform without another hard surface taking contact first.
Install through the specified equipment arrangement and evaluate the complete mechanism under normal conditions. During care, inspect the contact pattern and connection for damage or movement. Replace with the required profile and compound rather than selecting by size alone. If a material variant is used elsewhere with the same shape, keep it distinguished so that the correct formulation returns to each operating location during maintenance.
- Material options
- Neoprene compound options, customized alongside the profile and contact conditions.
- Hardness selection
- Solid rubber options: 30–90 Shore A. Leave the clearance required for the working section to deform without another hard surface taking contact first.
- Custom geometry
- Custom molded dimensions can follow the working face and attachment, with EPDM or neoprene formulations selected according to the actual environment.
- Fit evaluation
- Install through the specified equipment arrangement and evaluate the complete mechanism under normal conditions.
- Color & OEM
- Custom colors; part identification clear of mounting seats and loaded faces.
Photos illustrate structure or material appearance only. A broad outer shape may still receive contact only at one edge if the parts are misaligned. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
