Custom manufacturing example · Self-adhesive protective rubber anti vibration pads
CUSTOM RUBBER & SILICONE MANUFACTURING

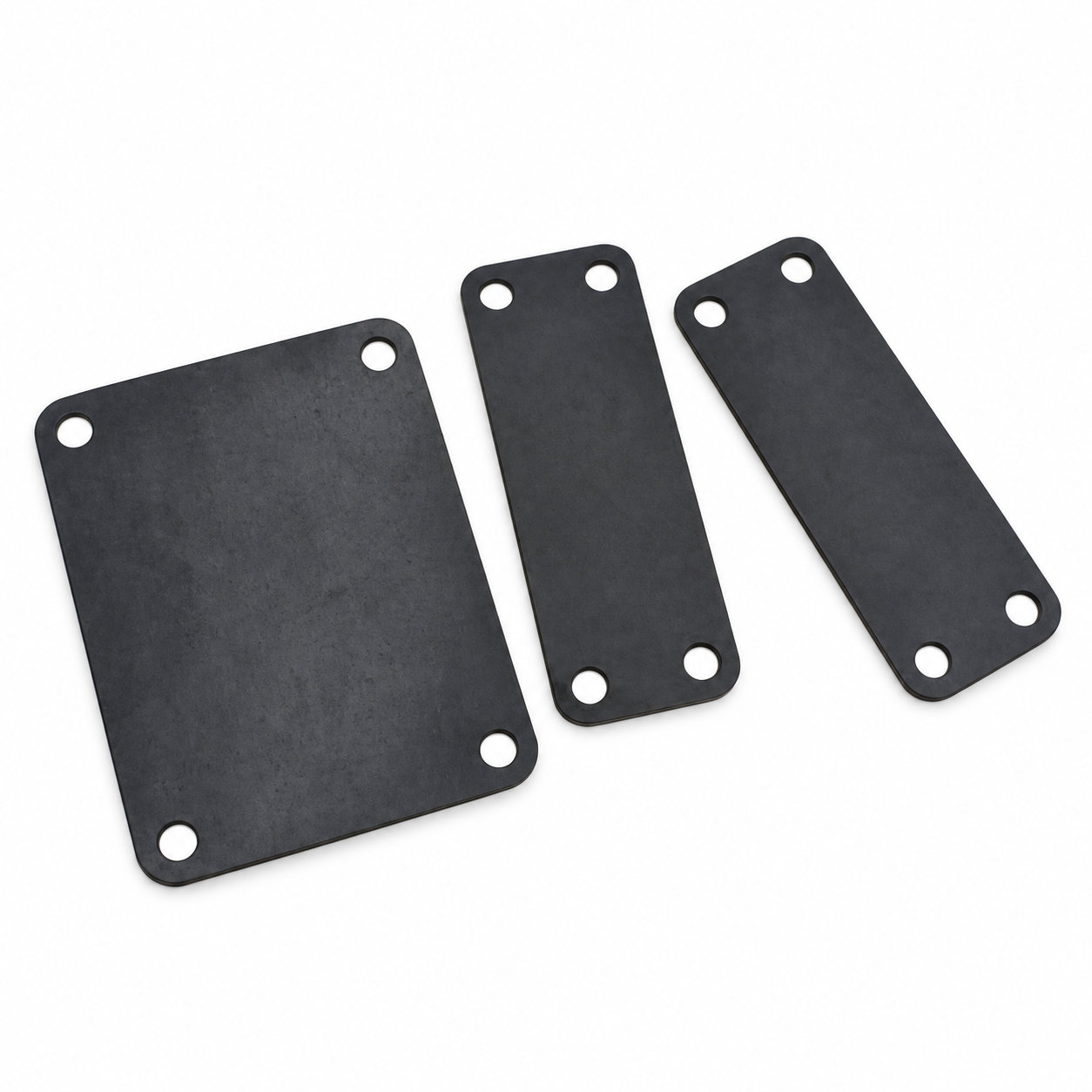

Self-adhesive protective rubber anti vibration pads
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
Self-adhesive rubber anti vibration pads add a compliant layer at selected contact points while keeping the pad located on its mounting surface. Their effect depends on the complete arrangement, including the supported mass, contact area and motion reaching each pad. Simply choosing the softest rubber does not establish the best result for an assembly.
Consider where the load enters the pad and whether nearby fasteners or rigid surfaces bypass the rubber layer. A pad placed beside a direct metal contact may provide little change at that particular contact path.
The adhesive must be suited to the surface and the direction of loading. Prepare the mounting area and follow the bonding conditions for the selected adhesive before evaluating the assembly. Keep cables or hoses from imposing an unintended sideways pull during that evaluation.
Compare behavior under the actual operating conditions, including startup and shutdown if they produce different movement. Examine the pads for displacement, excessive compression or contact with an adjacent hard surface. Make changes to pad geometry or arrangement as part of the assembly design, then reassess the result rather than assuming that extra pad layers will improve isolation.
- Material options
- Custom rubber compound and color, selected for the contact conditions and required geometry.
- Hardness range
- 30–90 Shore A for rubber. Assess the grade against this fit requirement: Consider where the load enters the pad and whether nearby fasteners or rigid surfaces bypass the rubber layer.
- Custom profile & fit
- Make changes to pad geometry or arrangement as part of the assembly design, then reassess the result rather than assuming that extra pad layers will improve isolation.
- Assembly considerations
- Simply choosing the softest rubber does not establish the best result for an assembly.
- Design check
- Prepare the mounting area and follow the bonding conditions for the selected adhesive before evaluating the assembly.
Photos illustrate structure or material only. A pad placed beside a direct metal contact may provide little change at that particular contact path. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
