Working conditions
Identify temperature, contact fluids and repeated movement.
Custom manufacturing example · Screw round strong vacuum silicone sucker rubber suction cups
CUSTOM RUBBER & SILICONE MANUFACTURING

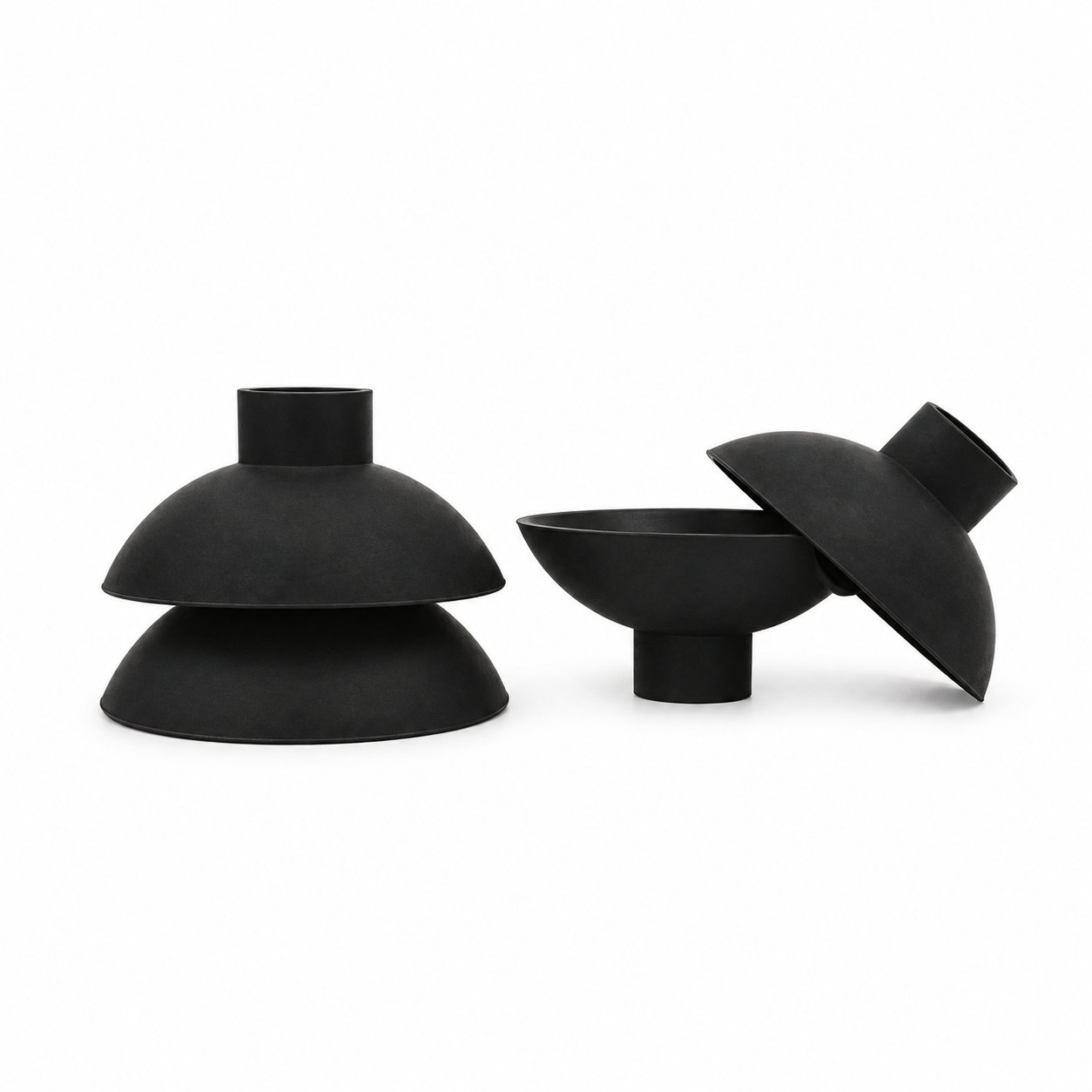

Screw round strong vacuum silicone sucker rubber suction cups
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A round strong vacuum silicone sucker with screw attachment should be evaluated for the actual position of the load relative to the cup. A round outline does not guarantee evenly distributed contact when the attached component pulls from one side. The mounting geometry should present the rim without a built in tilt.
Custom dimensions, material, hardness and color can follow the application. Define screw engagement and clearance alongside the cup profile. The receiving surface should provide an appropriate uninterrupted contact area.
Check the completed assembly under representative force directions and movement. Inspect the rim after fastening and after repeated release, looking for one area that curls or loses contact first. Keep the glass or other intended surface and the cup clean using compatible methods. During maintenance, review attachment alignment if contact repeatedly fails at the same position. A stronger sounding material or larger screw does not replace assessment of the complete surface and loading arrangement. Preserve the developed configuration when replacing the cup.
- Material options
- Custom silicone compound; formulation and geometry developed together.
- Hardness selection
- Silicone options: 20–80 Shore A. Check the completed assembly under representative force directions and movement.
- Custom geometry
- Define screw engagement and clearance alongside the cup profile.
- Fit evaluation
- Inspect the rim after fastening and after repeated release, looking for one area that curls or loses contact first.
- Color & OEM
- Custom colors; OEM markings outside the suction contact face.
Photos illustrate structure or material appearance only. The mounting geometry should present the rim without a built in tilt. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
