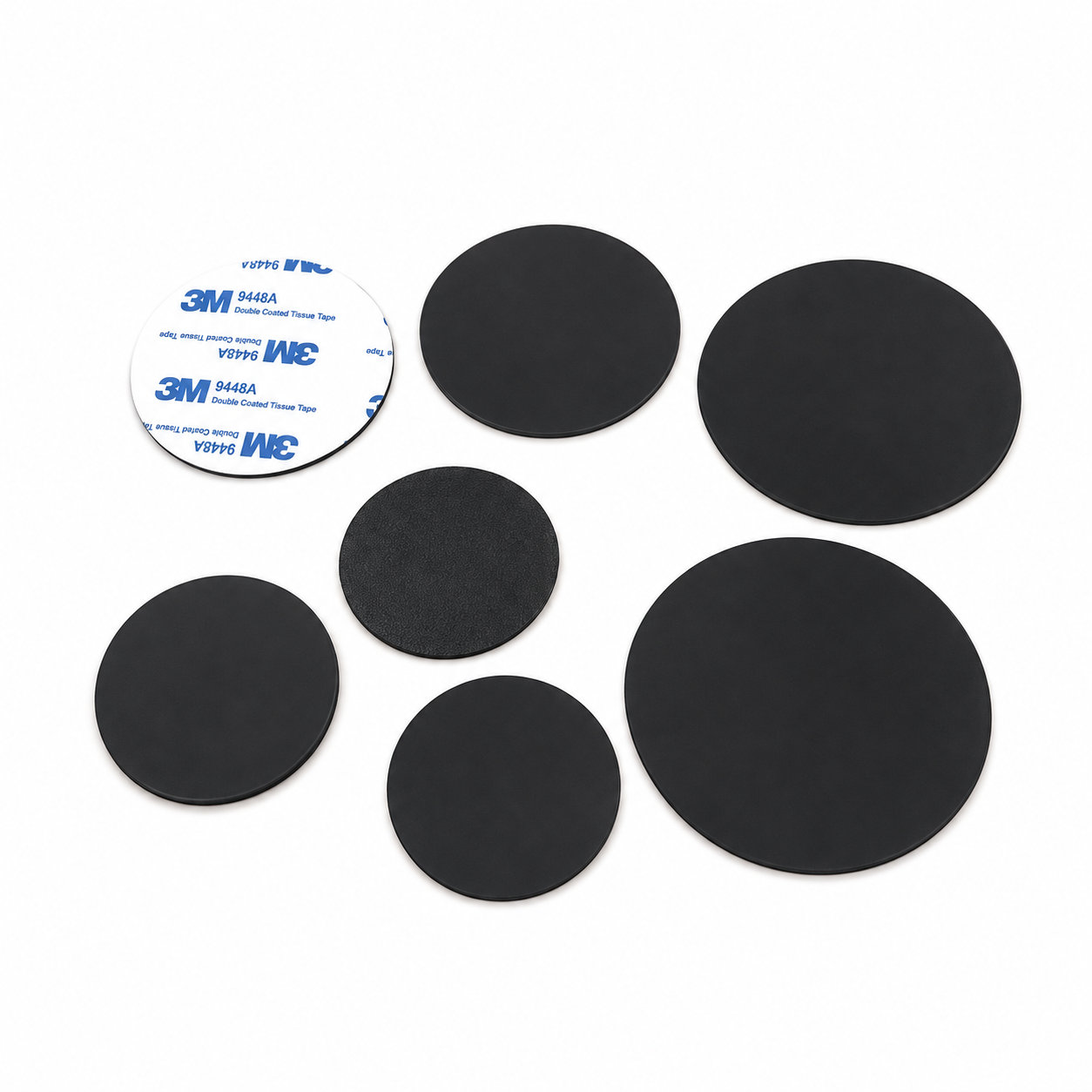

Anti Vibration Rubber Pads, Adhesive Neoprene Rubber Pad

An adhesive neoprene rubber pad creates a resilient layer at a selected equipment support. The bonded face holds its location, while the neoprene section occupies the working gap between the equipment and its support. These two functions meet different forces when the equipment moves.

Establish which direction the load takes through the rubber. Compression toward the supporting surface differs from a sideways force that tends to slide the pad across it. The useful area, thickness, and attachment must be considered with the equipment's weight distribution. A nearby metal contact can bypass the pad even when its bond remains secure.

Fit the pad onto the substrate prepared for the selected adhesive, then allow the required attachment process to finish before applying operating loads. Observe the installed height and any movement at the perimeter under the intended cycle, including stopping if that changes the force direction.

During inspection, distinguish a lifted adhesive edge from permanent deformation within the rubber. They call for different corrections. Preserve the evaluated neoprene construction when replacing the part, and review the mounting arrangement if the same corner repeatedly moves or compresses more than the rest.

Material options

Custom neoprene formulation; tailor the geometry and color to the required interface and exposure.

Hardness range

30–90 Shore A for rubber. Assess the grade against this fit requirement: Fit the pad onto the substrate prepared for the selected adhesive, then allow the required attachment process to finish before applying operating loads.

Custom profile & fit

The useful area, thickness, and attachment must be considered with the equipment's weight distribution.

Assembly considerations

The bonded face holds its location, while the neoprene section occupies the working gap between the equipment and its support.

Design check

Preserve the evaluated neoprene construction when replacing the part, and review the mounting arrangement if the same corner repeatedly moves or compresses more than the rest.

Photos illustrate structure or material only. The bonded face holds its location, while the neoprene section occupies the working gap between the equipment and its support. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
