Working conditions
Identify temperature, contact fluids and repeated movement.

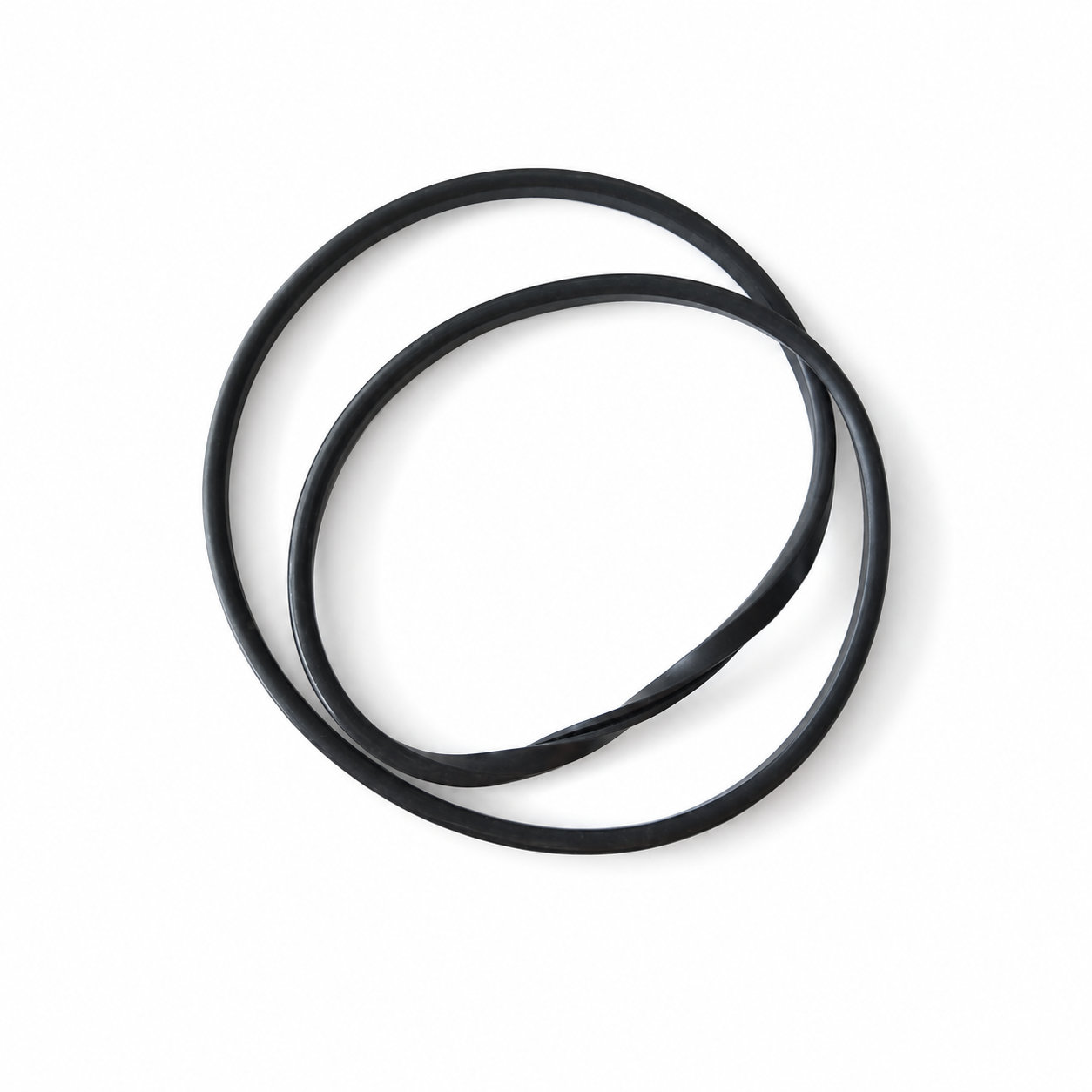

Custom manufacturing example · Factory wholesale NBR EPDM silicone viton round rubber gasket
CUSTOM RUBBER & SILICONE MANUFACTURING
Factory wholesale NBR EPDM silicone viton round rubber gasket
A custom component for your assembly.
Define the mating surfaces, dimensions and working conditions. ETOL manufactures the part to the agreed design and material.
- Factory direct
- Made to order
- Drawing & sample support
Share the part, its application and your estimated quantity.
Customize the fit, material and finish
Material & hardness
Selected for the contact, temperature and movement
Color & finish
Define the visible surfaces and intended color
Shape & dimensions
Develop holes, lips and walls around the mating parts
Mounting & fit
Match the attachment and installation method
Product Overview
A round rubber gasket provides a ring-shaped interface between compatible mating faces. Its inner diameter, outer diameter and thickness each define a different aspect of fit. The width of rubber between the two diameters should be supported by the joint rather than project unnecessarily into an opening or beyond an outer edge.
Choose the compound for the actual duty. NBR, EPDM, silicone and FKM options should be considered separately according to the fluid, temperature and surrounding environment. The circular outline does not establish that any one of those materials is suitable for every application.
Place the gasket on clean faces and check its position before closing the joint. It should not be stretched around an oversized locating feature or pulled sideways by a fastener. Evaluate sealing in the complete assembly under its intended conditions. During replacement, compare the original profile rather than using only the outside diameter, since a narrower ring or different thickness can alter compression even when the outer edge appears to match.
- Material options
- EPDM / NBR / FKM / Silicone. Custom formulation and color for the intended contact conditions.
- Hardness selection
- Rubber: 30–90 Shore A. Silicone: 20–80 Shore A. It should not be stretched around an oversized locating feature or pulled sideways by a fastener.
- Custom dimensions
- The width of rubber between the two diameters should be supported by the joint rather than project unnecessarily into an opening or beyond an outer edge.
- Fit & assembly
- Place the gasket on clean faces and check its position before closing the joint.
- Use & inspection
- During replacement, compare the original profile rather than using only the outside diameter, since a narrower ring or different thickness can alter compression even when the outer edge appears to match.
Photos illustrate structure or material only. The width of rubber between the two diameters should be supported by the joint rather than project unnecessarily into an opening or beyond an outer edge. ETOL directly manufactures custom-shaped silicone and rubber parts to your requirements.
From part requirements to production
01
Define the part
Identify key dimensions, mating surfaces and quantity
02
Review material & tooling
Agree the compound and manufacturing approach
03
Evaluate the sample
Review the fit and agreed requirements in the assembly
04
Produce & inspect
Manufacture and check against the approved requirements
Review the intended assembly
Material and structure
Consider hardness together with wall thickness and support.
Installation
Check access, mating dimensions and the fitting sequence.
Ordering this custom component
Can the shape be adjusted to my mating parts?
Yes. Show the receiving opening, contact surfaces and clearance limits. We can review the dimensions and retaining features around the intended fit.
Which details should be agreed before tooling?
Agree the critical dimensions, material, hardness, visible surfaces and sample requirements. Explain how the part is installed and which interfaces control its function.
Can a sample help define the replacement?
A sample can help explain the structure. Compare it with the assembly because wear, swelling or compression may have changed its original dimensions.
How is the quotation for this part determined?
The material, part geometry, tooling, quantity and finishing affect the quotation. Include the intended batch size and delivery destination when describing your requirements.
DISCUSS THIS COMPONENT
Describe the part you need.
Share the fit, operating conditions and quantity with our manufacturing team.
